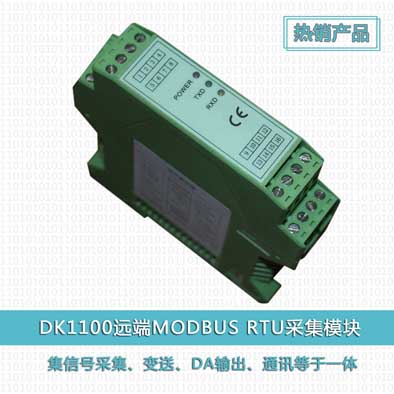

DK1100 single channel remote voltage current and single channel DA data acquisition module

Product features

Support a variety of common industrial standard signal input;

The output mode is optional, which supports two modes of measuring and sending and communicating DA.

Compact size, easy installation, standard 35mm guide rail installation;

DC24V/AC220V power supply optional.

Signal input, power supply, variable output three terminal isolation, isolation voltage 1500V AC.

input

Dc gear 11

0-(-5-5A), 1-(-1-1A), 2-(-100-100mA), 3-(-75-75mV), 4-(4-20mA) 5-(0-20mA) 6-(0-10mA) 7-(-500-500V) 8-(-100-100V), 9-(-10-10V) 10-(-1-1V)

7 exchanges

11- (0-5A) 12- (0-1A) 13- (0-100mA), 14- (0-500V) 15- (0-100V), 16- (0-100V), 17(0-1V)

output

0-5, 1-5V, 0-10V, 0-10mA, 0-20mA, 4-20mA

communication

Adopt the international standard photoelectric isolation MODBUS RTU communication mode.

Other detailed parameters

Comprehensive parameters

Comprehensive measurement accuracy

0.3%FS

Sampling speed

2KSPS

Transmission precision

16 bits

DA speed

10M SPS

Isolation voltage

Input, output and power 1500V AC 1 minutes between the three parties.

temperature drift

50ppm

electromagnetic compatibility

GB/T 18268 (IEC61326-1)

Use of the environment

Ambient temperature: 0~50 C; relative humidity: less than 85%RH; avoid strong corrosive gases.

Power Supply

DC24V/AC220V

Power waste

Power consumption is less than 2.4W

structure

35mm DIN guide rail installation

Selection size

Width * height * depth: 22.5*100*112mm

Example selection

1. customers need to exchange 0-5A current signal input; communication given DA, output is 4-20MA current signal;

Select 220V power supply.

The selection is as follows:

DK1100-AC-0A5-4MA20-AC220V

2. customers need DC -500V-500V voltage signal input; communication given DA, output 0-10V voltage signal;

The site is conveniently supplied with 24V power supply.

The selection is as follows:

DK1100-DC-500V-0V10-DC24V
